Internal Devices
The uniform performance of HMT's products is important to process.
Optimize column performance with HMT's cutting-edge column internals, employing a specialized approach for peak efficiency.
HMT engineers, with a deep understanding of the pivotal role of liquid and vapor distribution, meticulously design distributors and collectors.
HMT's comprehensive solutions go beyond internals, encompassing column layout, feed, and draw nozzle optimization, ensuring the highest level of column performance.
Drawing on decades of design expertise and continuous advancements, HMT's column internals provide tailored gas and liquid distribution,
transition sections, and flashing devices, ensuring optimal efficiency.
As integral components within HMT's full line of column internals, these solutions are indispensable for maximizing mass transfer efficiency in your distillation column.
LiquidㆍVapor Distributor
Optimal performance is achieved through the synergy of efficient liquid distribution and high performance packing.
HMT engineers possess the expertise to design liquid distributors as an integral component of the overall column solution,
ensuring uniform distribution and adequate gas passage area to prevent pressure drop or liquid entrainment.
Recognizing the pivotal role of liquid distribution in packed bed performance, HMT provide a diverse range of liquid distributors tailored for various applications.

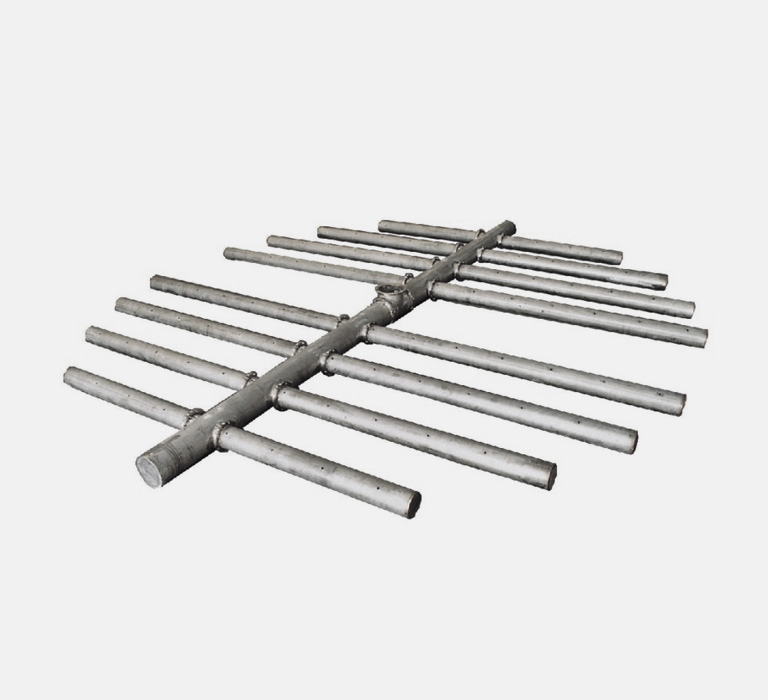

Lateral Type

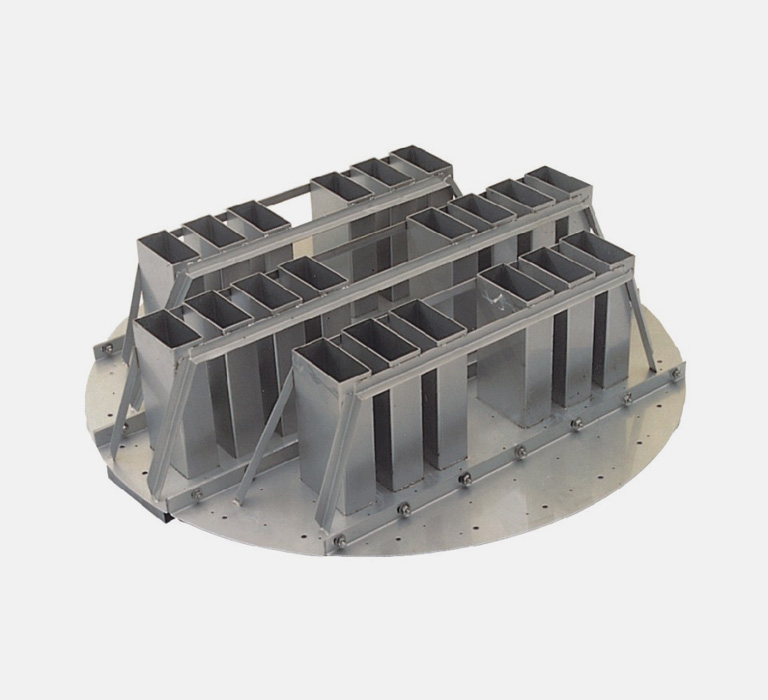

Trough Type

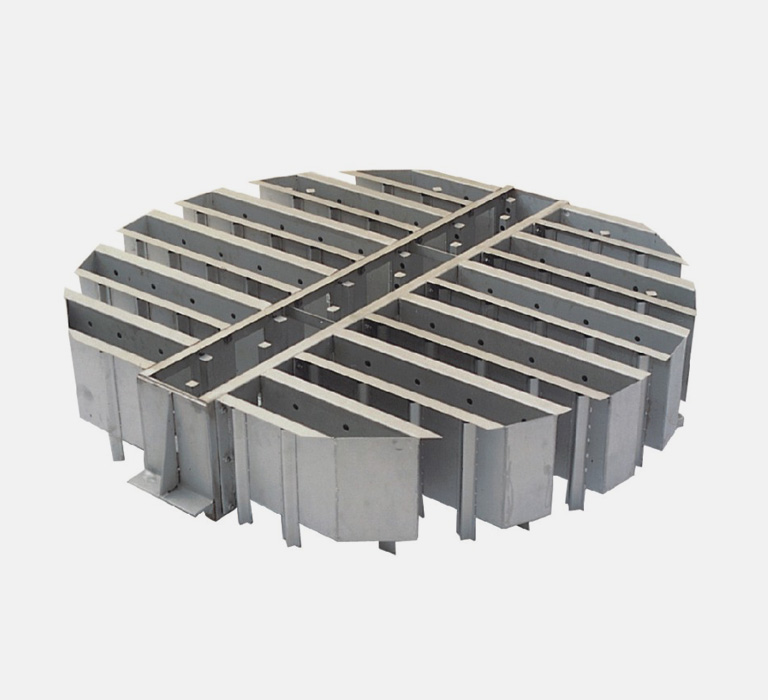

Deck Type
Collector Tray
Frequently essential for liquid collection between packed beds, collector trays are designed with versatility to cater to diverse needs.
Tailored to each application, separate collectors enhance cross-mixing and facilitate the blending of feed streams with internal column liquid.
Bed Limiter
Bed limiters play a crucial role in enhancing the stability of structured packing during potential upset conditions, preventing displacement and ensuring operational reliability.
Specifically recommended for random packing, bed limiters and anti-migration devices are indispensable due to the challenging predictability of conditions leading
to fluidization at the top of a random packed bed.

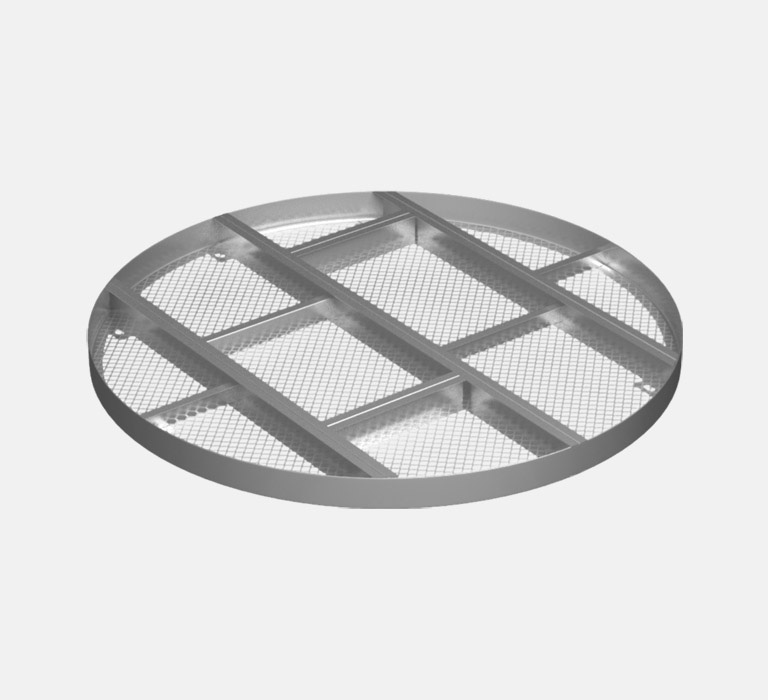

Mesh Type

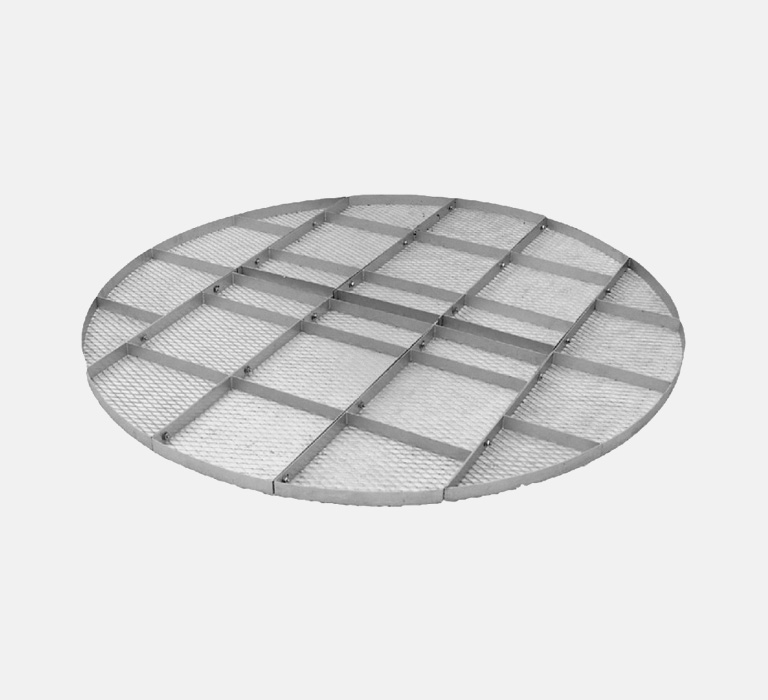

Mesh Type

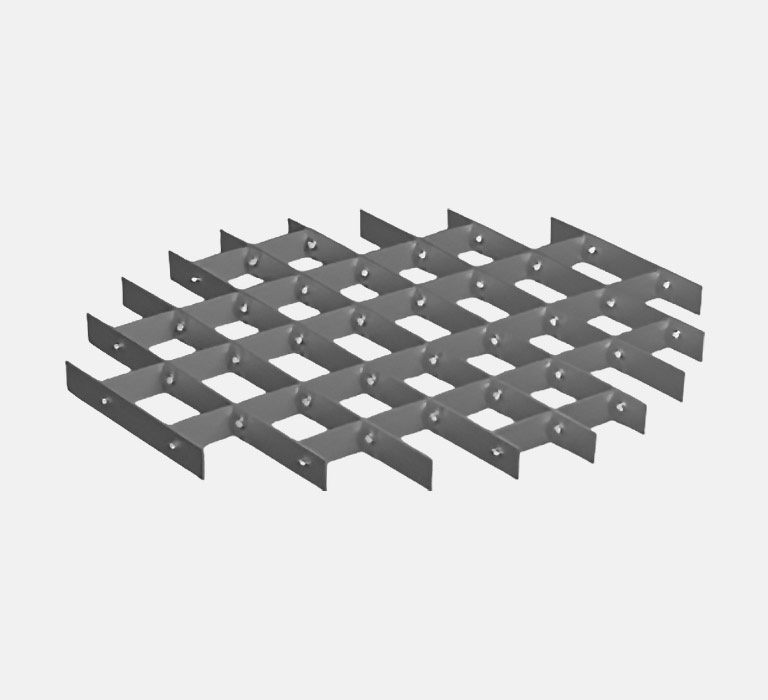

Grating Type
Packing Support
HMT provides a diverse array of packing support meticulously designed for various packing types.
Engineered for swift installation without welding, these solutions, supported from tower attachments.
Tailored to accommodate different tower sizes and bed depths, additional beam supports are thoughtfully designed for larger towers.
Feed Inlet Device
HMT supplies various feed inlet device for liquid and vapor distribution and solving liquid entrainment problems.
HMT's feed inlet devices assist in vapor distribution, liquid pre-distribution, reducing momentum, foam suppression.
Please contact HMT for inquiries regarding the appropriate feed inlet device.
Feel free to reach out to HMT for information on the suitable feed inlet device for your requirements.

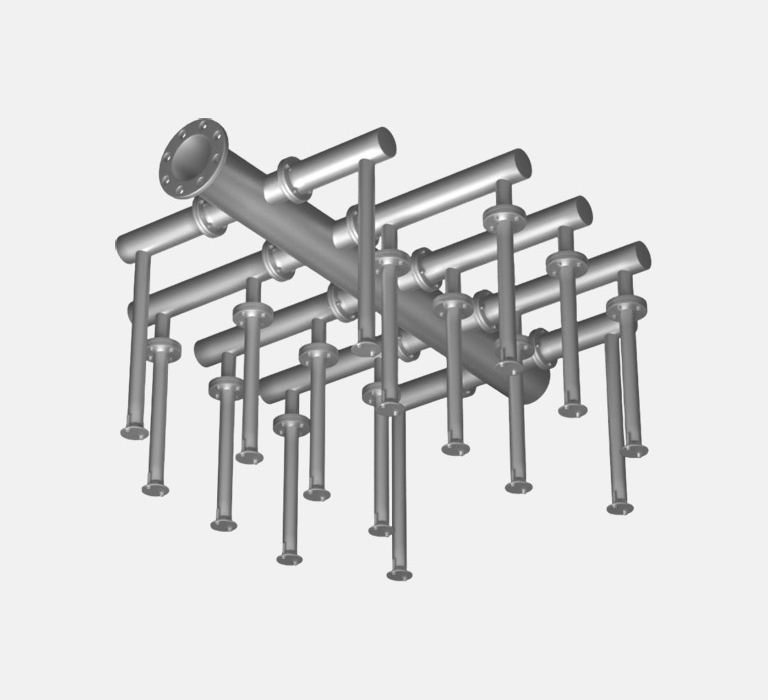

Ladder Type

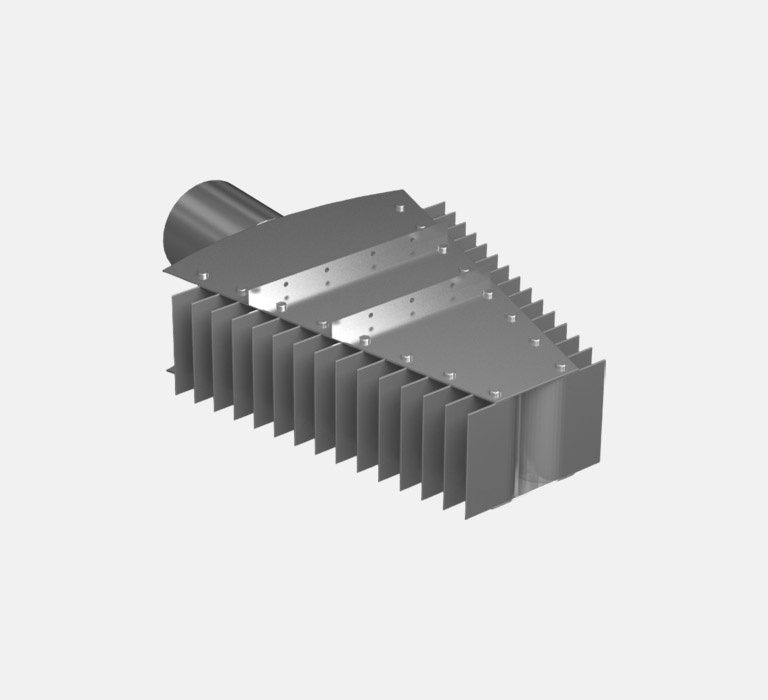

Vane Type

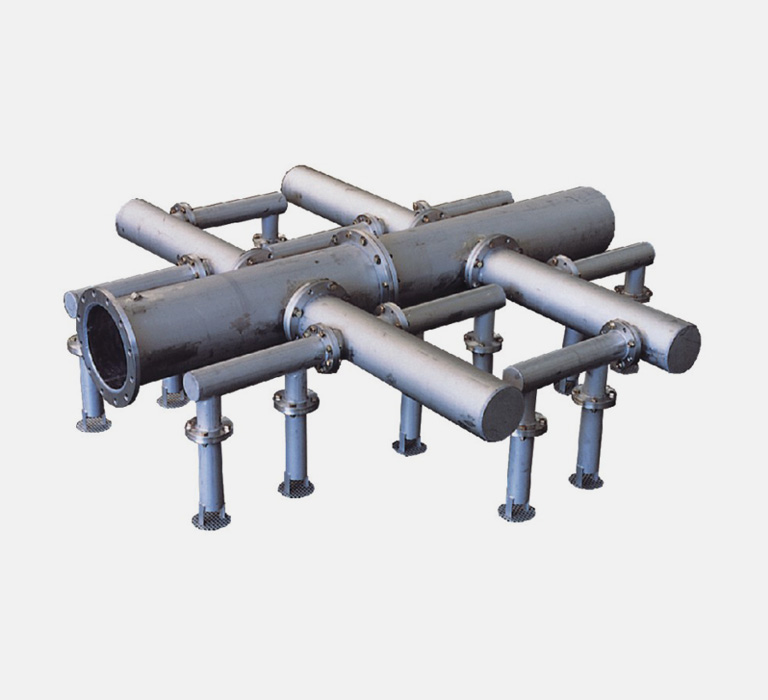

Lateral Type
- FRP Gas Injection Support Plate
- Suppprt Grid for Structured or Wire Gauze Packings
- Hold Down Plate for Ceramic or Carbon Packings
- Non Interferring Bed Limiter for Random Packings
- PP/PVC Bed Limiter for Random Packings
- Bed Limiter for Structured or Wire Gauze Packings
- Pan Distributor/Redistributor
- Deck Distributor/Redistributor
- Trough Distributor/Redistributor
- Pipe Arm Distributor
- Spray Type Liquid Distributor
- Rosette Type Distributor
- Liquid Only Distributor
- Flashing Feed Gallery
- Flashing Feed Chamber
- Flashing Feed Pipe
- Vapor Diffuser
- Vapor Distributor
- Trough Liquid Collector
- Deck Liquid Collector
- Liquid-Liquid Disperser Support Plate
- Liquid-Liquid Disperser Support Plate
- Liquid-Liquid Disperser-Phase Feed Pipe
- Liquid-Liquid Continuous-Phase Distributor
- Vapor Horn
- Half Open Pipe
- Spray Nozzle
